Vegetable Oil Extraction Plant - Mohit International

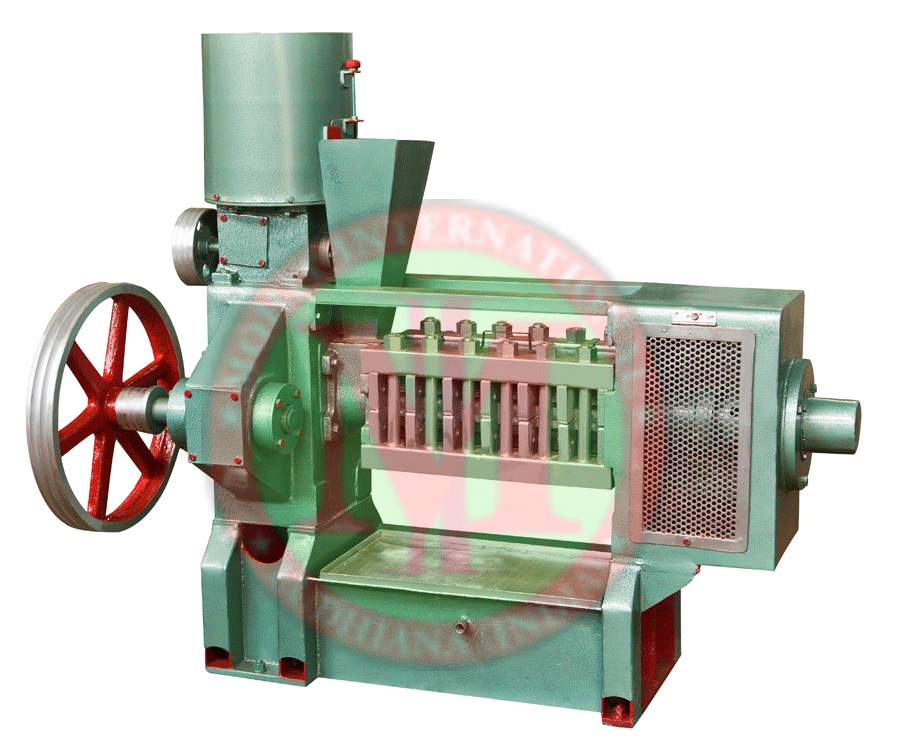

Oil Expeller - Mohit 100

We are offering to our clients Oil Seeds Expeller (Mohit 100 ) which is suitable for crushing all types of oil seeds whether edible or non-edible.

Salient features of oil Expeller – Mohit 100 (6 Bolts)
• Cast iron bodies and gear box.
• Single reduction gear box with helical gears.
• Fabricated chamber of size: 24″ long x 4″ Inner diameter.
• Cake thickness cannot be adjusted on running machine.
• Case hardened / Tempered worm assembly.
• EN-8 Main Worm Shaft and Driving Shaft.
• Superior quality of oil & cake.
• Maintenance is less & easy.

Specifications of oil expeller – Mohit 100
• Power consumption: 3-phase 7. 5 h. P motor – 960 RPM.
• Feeding drum: single stage with & without steam heating arrangement (as required).
• Highest capacity: 100 kgs per hour (capacity differs with material density & quantity of oil in it.)
• Overall machine dimensions ( approx. )
• Length : 2200mm (86″)
• Breadth : 700mm (27″)
• Height : 1430mm (56″)

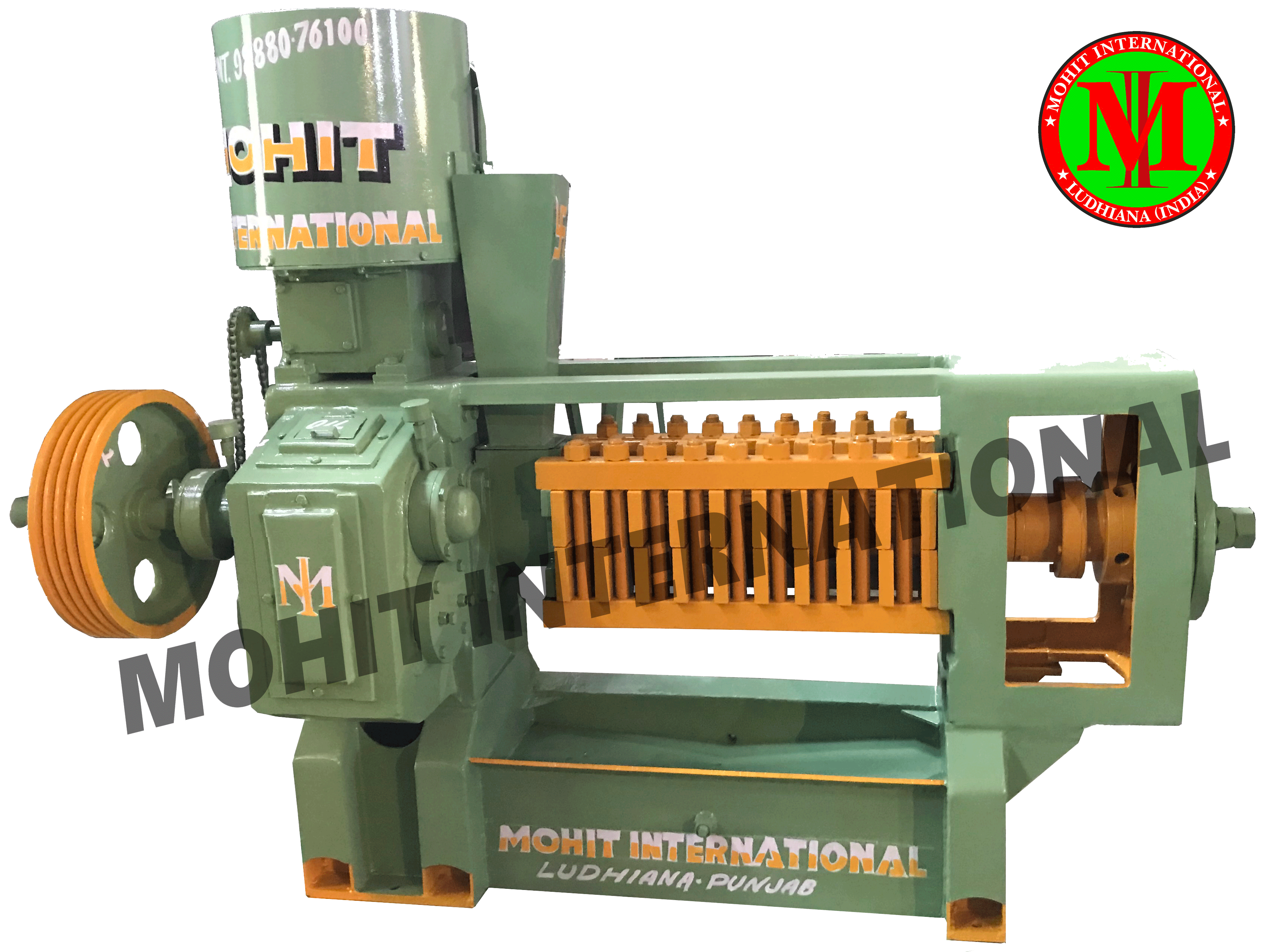

Oil Expeller - Mohit 150

We are offering to our clients Oil Seeds Expeller (Mohit 150 ) which is suitable for crushing all types of oil seeds whether edible or non-edible.

Salient features of oil Expeller – Mohit 150 (9 Bolts)
• Cast iron bodies and gear box.
• Double reduction gear box with helical gears.
• Fabricated chamber of size: 27″ long x 4 ½” Inner diameter.
• Cake thickness cannot be adjusted on running machine.
• Case hardened / Tempered worm assembly.
• EN-8 Main Worm Shaft and Driving Shaft.
• Superior quality of oil & cake.
• Maintenance is less & easy.

Specifications of oil expeller – Mohit 150 (9 Bolts)
• Power consumption: 3-phase 10 hp motor – 960 RPM.
• Feeding drum: single stage with & without steam heating arrangement (as required).
• Highest capacity: 140 kgs per hour (capacity differs with material density & quantity of oil in it.)
• Overall machine dimensions (approx.)
• Length : 2200mm (90″)
• Breadth : 700mm (27″)
• Height : 1430mm (56″)

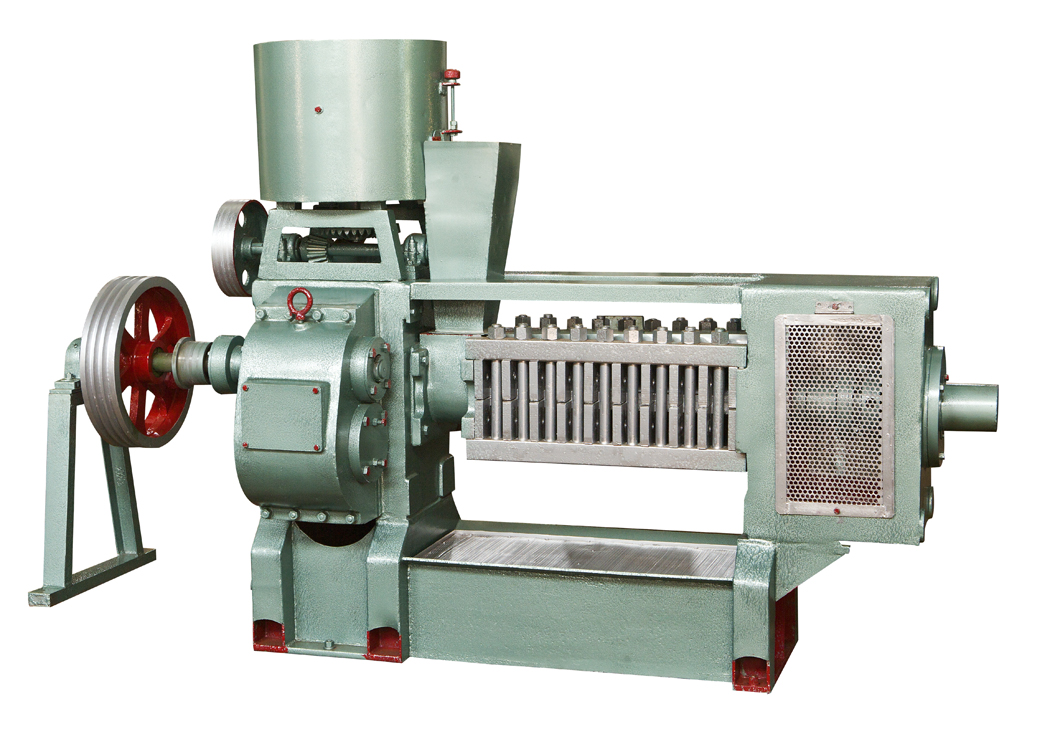

Oil Expeller - Mohit 250

We are offering to our clients Fabricated Oil Expeller which is suitable for crushing all types of oil seeds whether edible or non-edible.

Salient Features of oil expeller – Mohit 250 (9 Bolts)
• Cast iron bodies & Gear Box.
• Steel fabricated chamber and Gears.
• Fabricated chamber of size: 30″ long x 5 & 5 ½” Inner diameter.
• Single / Double reduction gear box with steel casted.
• Helical gears and pinions.
• EN-8 Main Worm Shaft and Driving Shaft.
• 20 H. P. For expeller.
• Case hardened / Tempered worm assembly and Cage bars.

Specifications of oil expeller – Mohit 250 (9 Bolts)
• Power consumption: 3-Phase 20 hp / 25hp motor -960rpm
• Capacity: 220 – 250 kgs per hour.(capacity differs with material density & quantity of oil in the seed.)
• Kettle: single stage cooker, size 26 diameter”
• Overall machine dimensions (approx.)
• Length : 2900mm
• Breadth : 960mm
• Height : 2150mm

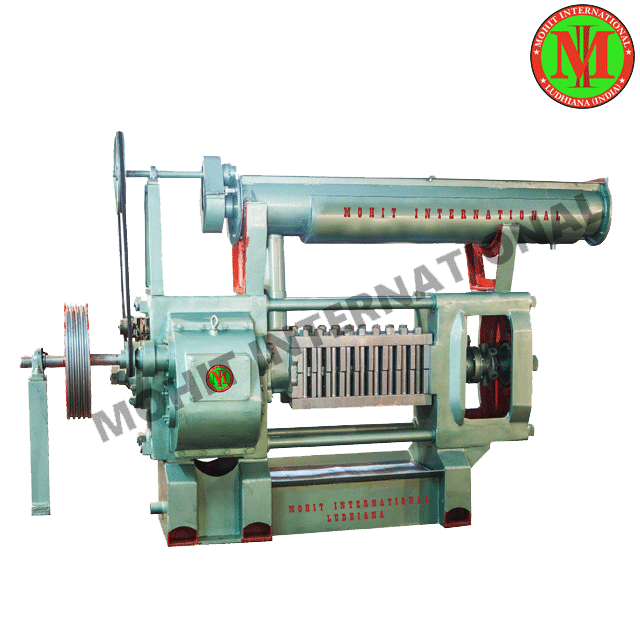

Oil Expeller - Mohit 390

We are offering to our clients Fabricated Oil Expeller which is suitable for crushing all types of oil seeds whether edible or non-edible.

Salient Features of oil Expeller – Mohit 390
• Double reduction gear box of cast iron body and steel fabricated gears.
• Cake thickness adjusting feature is not available in this model.
• Case hardened / Tempered Worm Assembly, Cage Bars & Cone Point.
• Main worm shaft can be withdrawn without disturbing the gear box.
• Crammer shaft gives extra cramming of the seed or cake in the feed body.
• EN-8 Main Shaft and Driving Shaft.
• Superior quality of oil & cake.
• Maintenance is less & easy.
• Steel fabricated base.
• Chamber is assembled MS plate and frame bars of size 33″x 6″.

Specifications of oil expeller – Mohit 390
• Power Consumption: 3-phase 30hp motor 960 rpm
• Steam Kettle: 8 Feet Long with steam jacket for efficient cooking of seed. Pipe fitting contains all the required accessories.
• High Capacity: 8.5 - 9 ton (in 24 hours) (capacity differs with material density & quantity of oil in the seed. )
• Overall Machine Dimensions ( Approx. )
• Length: 2640mm (8’8″)
• Breadth: 1200 mm (3’11″)
• Height: 2743 mm (9′)

Oil Expeller - Mohit 450

We are offering to our clients Fabricated Oil Expeller which is suitable for crushing all types of oil seeds whether edible or non-edible.

Salient Features of oil Expeller – Mohit 450
• Double reduction gear box of cast iron body and steel fabricated gears.
• Cake thickness adjusting feature is not available in this model.
• Case hardened / Tempered Worm Assembly, Cage Bars & Cone Point.
• Main worm shaft can be withdrawn without disturbing the gear box.
• Crammer shaft gives extra cramming of the seed or cake in the feed body.
• EN-8 Main Shaft and Driving Shaft.
• Superior quality of oil & cake.
• Maintenance is less & easy.
• Steel fabricated base.
• Chamber is assembled from plate and frames of size 36″x 6 ½″.

Specifications of oil expeller – Mohit 450
• Power Consumption: 3-phase 40hp motor 960 rpm
• Steam Kettle: 8 Feet Long with steam jacket for efficient cooking of seed. Pipe fitting contains all the required accessories.
• High Capacity: 11 - 12 ton (in 24 hours) (capacity differs with material density & quantity of oil in the seed. )
• Overall Machine Dimensions ( Approx. )
• Length: 3048mm (10’)
• Breadth: 1200 mm (3’ - 11″)
• Height: 2743 mm (9′)

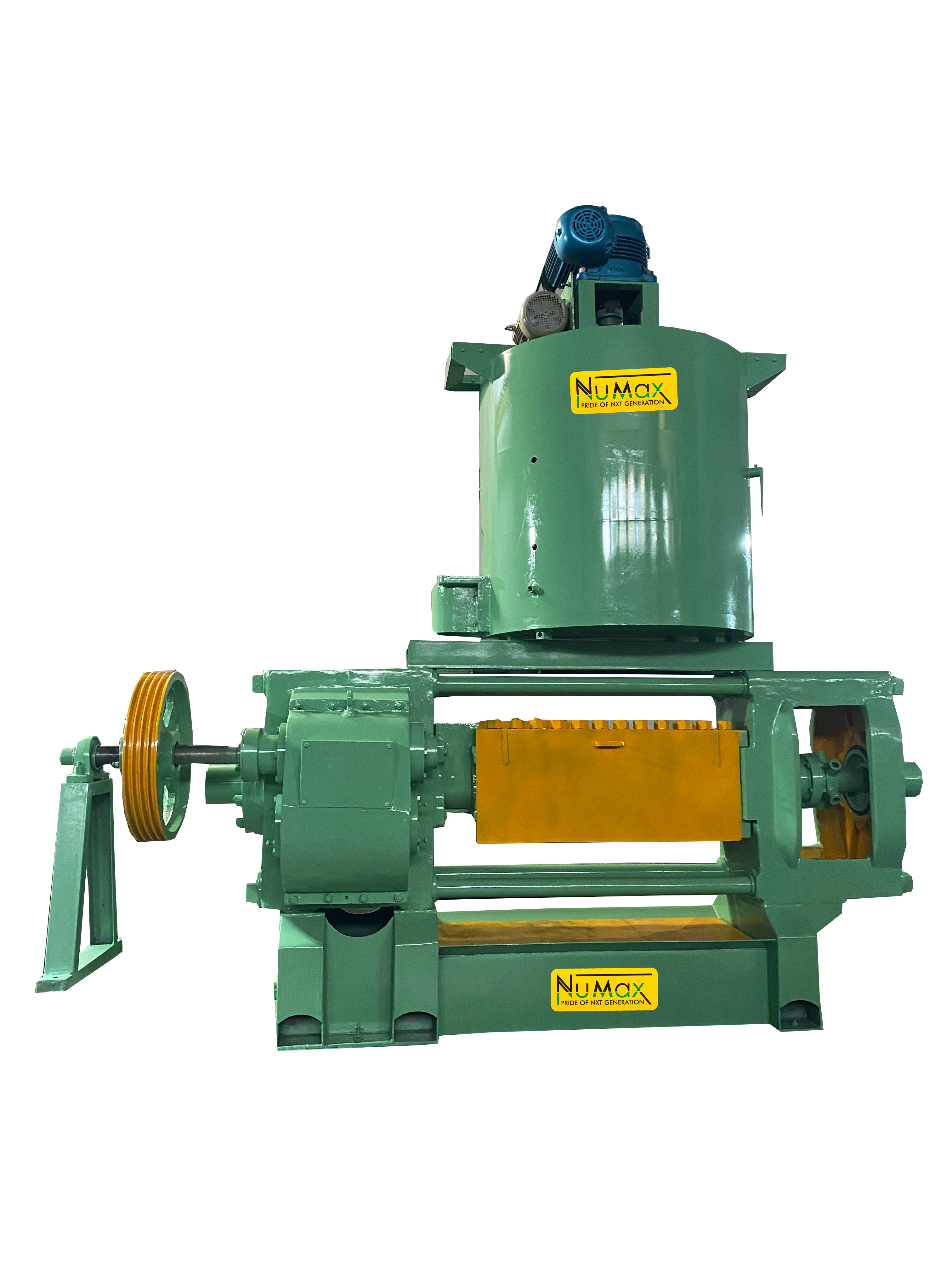

Oil Expeller - Mohit 600

This machine is used for extracting oil from raw materials. It is designed to ensure modern oil milling & maximum percentage of extraction from different varieties of oil seeds. Our expellers (Oil Production Machinery) are precision-engineered and are made of high grade raw material.

Salient Features of oil Expeller – Mohit 600
• Double reduction Gear Box of Cast Iron Body and Mild Steel Fabricated Gears.
• Case Hardened / Tempered Worm Assembly, Cage Bars and Cone Point.
• Main Worm Shaft can be withdrawn without Disturbing the Gear Box.
• Crammer Shaft gives extra cramming of the Seed or Cake in the Feed Body.
• Superior quality of Oil & Cake.
• Low Maintenance.
• Steel Fabricated Base.
• Chamber is made from Mild Steel Plates & Frame bars size 44” x 7 ½” x 6 ½ “ Long.

Specifications of oil expeller – Mohit 600
• Power Consumption: 3-phase 40 H. P motor
• Kettle: Two / Three High 48″ Diameter for Efficient Cooking of Seed, Pipe Fitting Contains all the required accessories or Long Steam Kettle 12 Feet Long also available.
• High Capacity: 600 Kgs Per Hour (Capacity differs with material density & quantity of oil in the seed)
• Overall Machine Dimensions ( Approx. )
• Length: 3550 mm
• Breadth: 1300 mm
• Height: 3600 mm

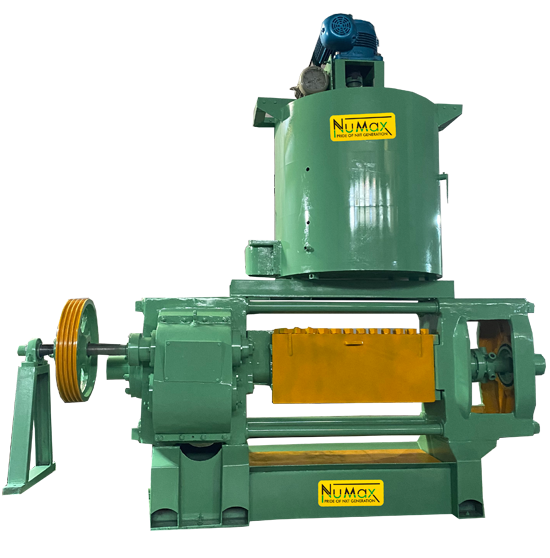

Oil Expeller - Mohit 625

This machine is used for extracting oil from raw materials. It is designed to ensure modern oil milling & maximum percentage of extraction from different varieties of oil seeds. Our expellers (Oil Production Machinery) are precision-engineered and are made of high grade raw material.

Salient Features of oil Expeller – Mohit 625
• Double reduction Gear Box of Cast Iron Body and Mild Steel Fabricated Gears.
• Case Hardened / Tempered Worm Assembly, Cage Bars and Cone Point.
• Main Worm Shaft can be withdrawn without Disturbing the Gear Box.
• Crammer Shaft gives extra cramming of the Seed or Cake in the Feed Body.
• Superior quality of Oil & Cake.
• Low Maintenance.
• Steel Fabricated Base.
• Chamber is made from Mild Steel Plates & Frame bars size ø 8″ x -ø 7″ x 44″ Long.

Specifications of oil expeller – Mohit 625
• Power Consumption: 3-phase 40 H. P motor
• Kettle: Two / Three High 48″ Diameter for Efficient Cooking of Seed, Pipe Fitting Contains all the required accessories or Long Steam Kettle 12 Feet Long also available.
• High Capacity: 14-15 Ton (In 24 Hours) (Capacity differs with material density & quantity of oil in the seed)
• Overall Machine Dimensions ( Approx. )
• Length: 3550 mm
• Breadth: 1300 mm
• Height: 3600 mm

*Also we have Screw Presses having crushing capacity 20, 25, 30, 40 & 50 Ton Per day
